Domains, Services, and Backends
Reference for how Harness RPA discovers and categorizes domains, services, and backends and tracks their API traffic and performance
Harness provides a comprehensive view of your API ecosystem by automatically discovering and categorizing your application’s domains, services, and backends. It tracks API traffic, monitors performance metrics, and identifies security threats in real-time. The platform enables you to view detailed information about your APIs, including endpoints, latency, call activity, and errors.
Harness provides an extensive view of your applications by automatically discovering and categorizing the domains, services, and backends within your application. It tracks the data flowing through your APIs, monitors performance, and identifies security threats in real-time. The Harness platform provides comprehensive information about your APIs, including a list of endpoints, latency, call activity, and errors.
With Harness, you can:
Analyze the interactions between APIs across Domains, which represent logical groups of APIs.
Drill down into Services, representing specific components or microservices within your application ecosystem.
Monitor Backends, which are external systems or databases with which your APIs interact.

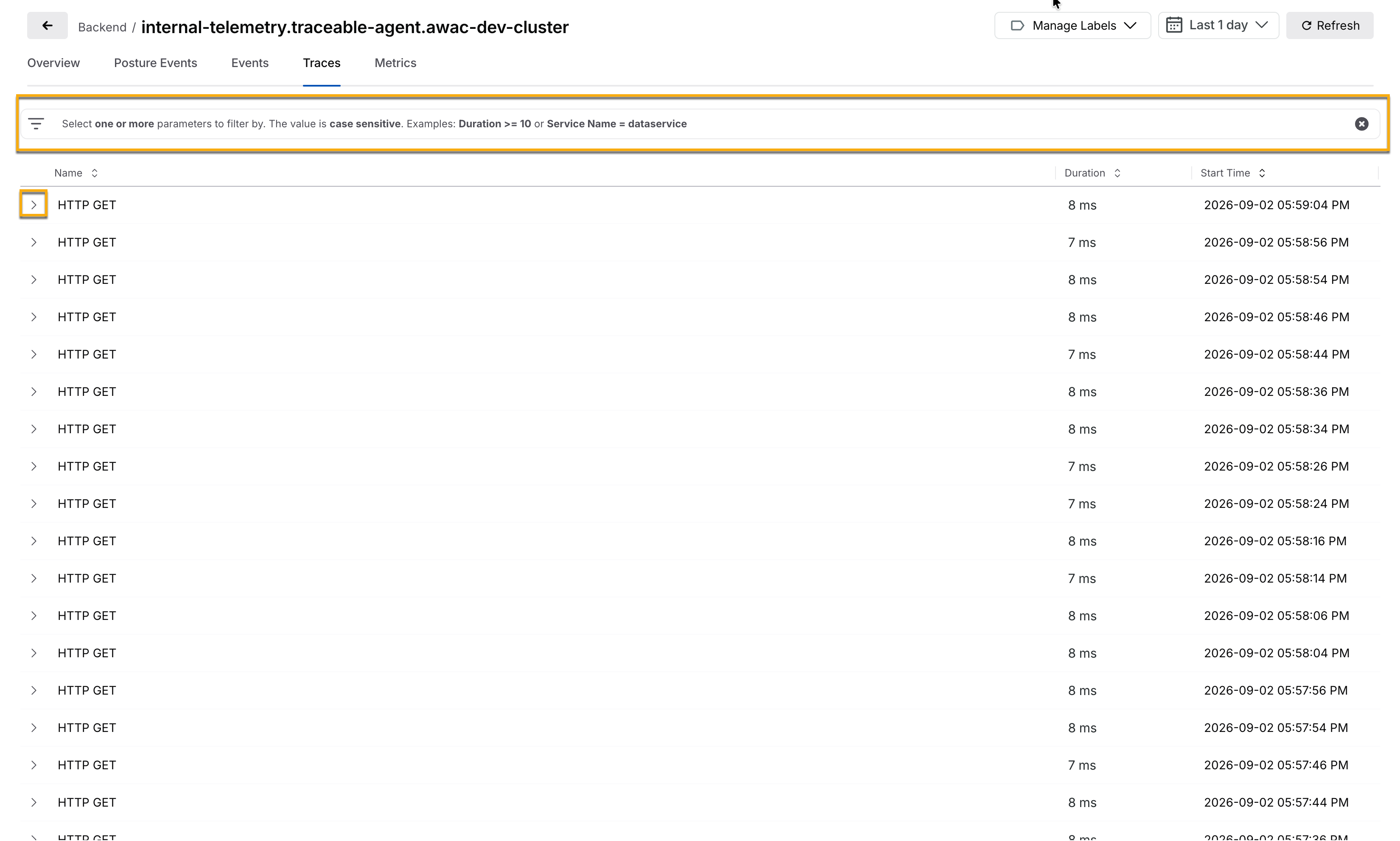

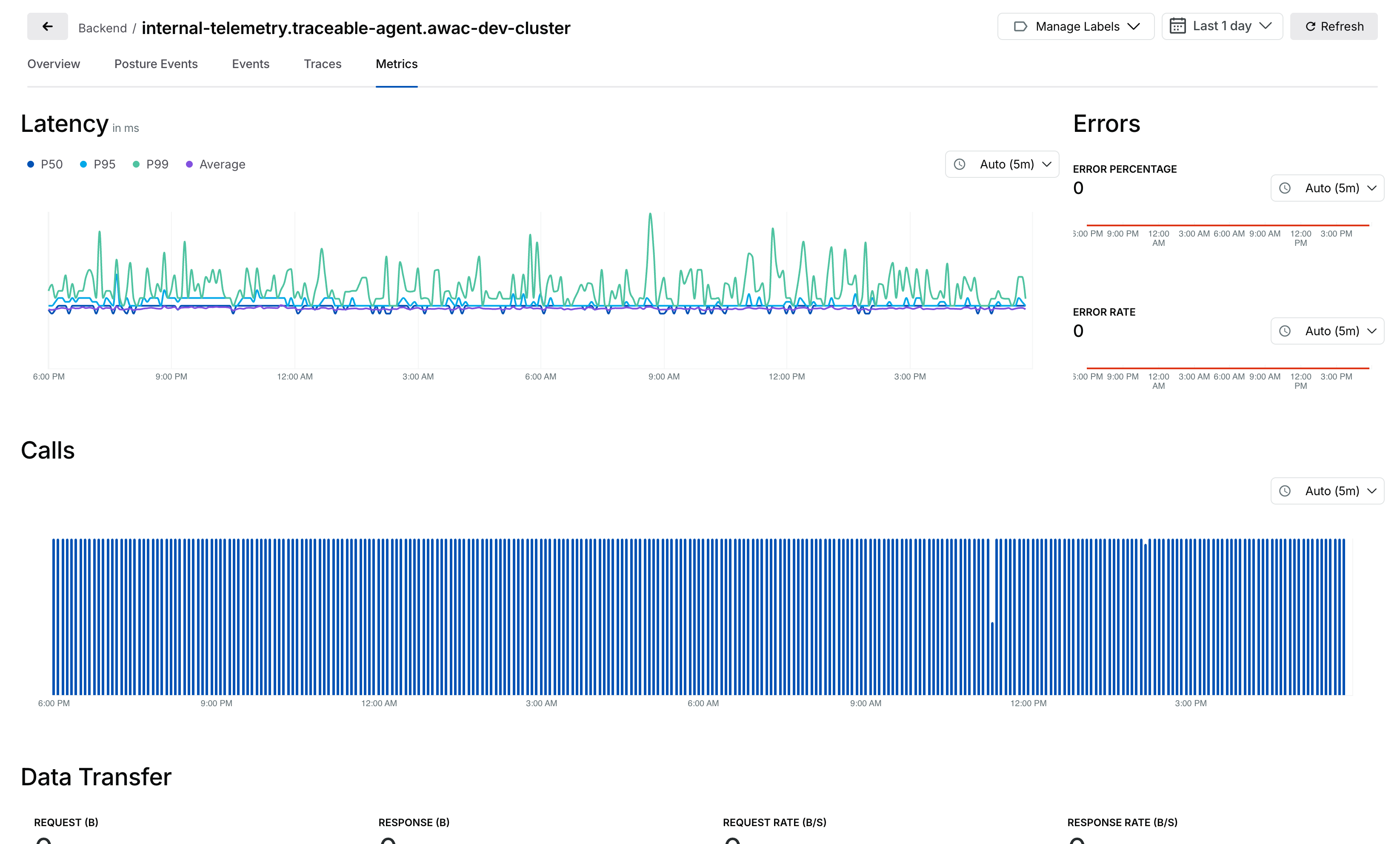

Harness also provides traces of API requests for each domain, service, and backend, showing detailed information such as protocols, status, duration, and start time. This enables you to conduct a detailed analysis of the API's behavior. Additionally, the time-series charts on latency, error rates, and call volumes help track the overall performance of the APIs and optimize your system.
Harness lists the data for domains, services, and backends across All Environments by default. You can view these details for a specific environment by selecting it from the Environments drop-down in the page’s top right corner. Additionally, Harness provides you with filters that allow you to fine-tune the results displayed on the page. You can open the filter pane by clicking the Filter () icon in the page’s left top corner. The pane shows the following tabs:
Filters
Lists the filters available for you to choose from.
Saved
Lists the filters that you have saved for later use.
Recent
Lists the filters that you recently applied.
While Harness shows some columns for the domains, services, and backends by default, you can edit the layout to add or remove columns according to your requirements. To do so, click the Ellipse () icon in the page’s top right corner and click Edit Columns. Add or remove columns in the pop-up window, adjust the layout according to your requirements, and click Apply.
Domains
The Domains tab under Inventory lists the domains Harness has discovered in your application. The page displays the following information for a domain:

Domain details
Description
Name
The name of the domain Harness has discovered.
API Endpoints
The number of API endpoints under the domain.
Avg (Average) Latency
The average latency observed for calls to the domain.
P99 Latency
The 99th-percentile latency observed for calls to the domain.
Calls in the last 24 hours
The total number of calls made to the domain in the last 24 hours.
Errors in the last 24 hours
The total number of errors observed for the domain in the last 24 hours.
Last Called
The time at which an API under the domain was last called.
The Domains tab displays data with the Is Learnt, Is Internet Facing, and Is IP Address filters applied by default. However, you can also use the following filters on the page:
Filters
Description
Domain name
Displays data based on the name of the domain Harness has discovered.
Is Internet Facing
Displays domains based on whether they are reachable from the public internet.
Is IP address
Displays data based on whether it is an IP address or not.
Is Learnt
Displays data based on whether the domain is learned or not.
You can click a domain name to view its detailed information. Go to Domain, service, and backend detail tabs to learn about the details displayed for each domain.

Services
The Services tab under Inventory lists the active services Harness has discovered in your application. The page displays the following information for a service:

Service details
Description
Name
The name of the service Harness has discovered.
API Endpoints
The number of API endpoints under the service.
Avg (Average) Latency
The average latency observed for calls to the service.
P99 Latency
The 99th-percentile latency observed for calls to the service.
Calls in the last 24 hours
The total number of calls made to the service in the last 24 hours.
Errors in the last 24 hours
The total number of errors observed for the service in the last 24 hours.
Last Called
The time at which an API under the service was last called.
The Services tab displays data with the Is Learnt filter applied by default. However, you can also apply the following filters on the page:
Filters
Description
Is Learnt
Displays data based on whether the service is learned or not.
Labels
Displays data based on labels assigned to services.
Service Name
Displays data based on the name of the service Harness has discovered.
Service Type
Displays data based on the type of service discovered.
You can click a service name to view its detailed information. Go to Domain, service, and backend detail tabs to learn about the details displayed for each service.

Backends
The Backends tab under Inventory lists the backends Harness has discovered in your application. The page displays the following information for a backend:

Backend details
Description
Name
The name of the backend Harness has discovered.
API Endpoints
The number of API endpoints under the backend.
Avg (Average) Latency
The average latency observed for calls to the backend.
P99 Latency
The 99th-percentile latency observed for calls to the backend.
Calls in the last 24 hours
The total number of calls made to the backend in the last 24 hours.
Errors in the last 24 hours
The total number of errors observed for the backend in the last 24 hours.
Last Called
The time at which an API under the backend was last called.
Caller Services
The number of services that call the backend.
The Backends tab provides the following filters on the page:
Filters
Description
Backend Name
Displays data based on the name of the backend Harness has discovered.
Backend Type
Displays data based on the type of backend discovered.
Labels
Displays data based on labels assigned to backends.
You can click a backend name to view its detailed information. Go to Domain, service, and backend detail tabs to learn about the details displayed for each backend.

Domain, service, and backend detail tabs
The following sections explain the various tabs displayed for each domain, service, and backend:
