Export security test results

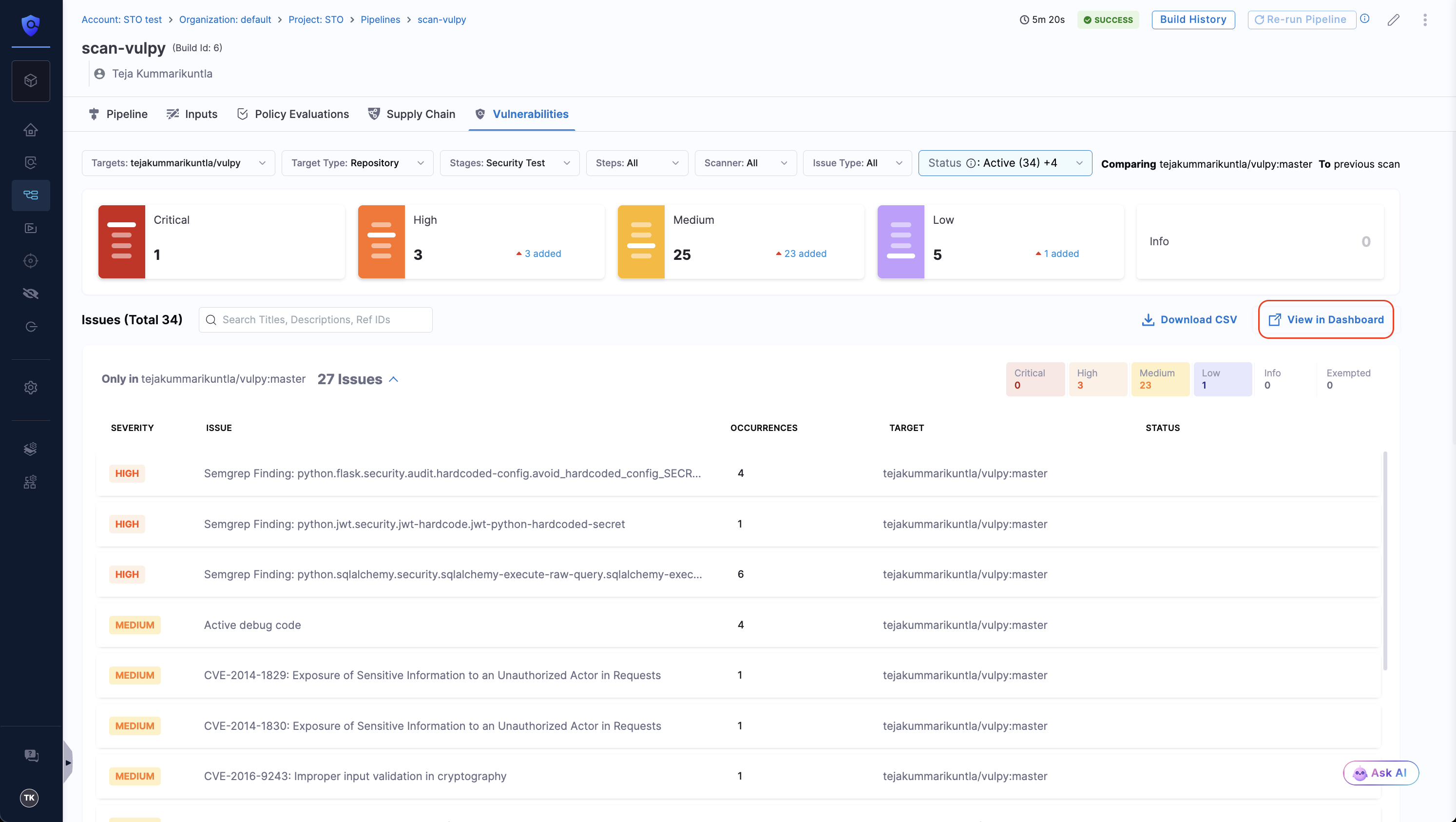

After a successful pipeline scan execution, you can view the scan results in the Security Tests tab of the Pipeline Execution UI. Currently, the Security Tests tab does not provide an option to export scan results directly. Instead, you can export scan results using the STO Pipeline Execution Summary Dashboard.

You can export security test results in two ways:

1. Direct export from Dashboard: Manually download scan results from the STO Pipeline Execution Summary Dashboard UI.
2. Automated export via pipeline: Configure a pipeline with a Run step to automatically generate and email a report of the scan results.

Export scan results from Dashboard

To export scan results directly from the dashboard:

1. Navigate to the STO Pipeline Execution Summary Dashboard.
2. Set the Pipeline and Execution ID filters to identify the specific scan execution you want to export results from. To locate the Execution ID:
   • Go to your pipeline's Execution History.
   • Select the specific pipeline execution.
   • In the URL, the execution ID follows the /executions/ segment:

   https://app.harness.io/ng/account/ACCOUNT_ID/module/MODULE/orgs/ORG/projects/PROJECT/pipelines/PIPELINE/executions/EXECUTION_ID/pipeline
3. After the results load, click the Options menu in the upper-right corner of the dashboard page and select Download.
4. Choose your download format (PDF or CSV) to export the scan results.

Automated export using a pipeline Run step

You can set up your pipeline to automatically generate and email the scan results. This requires configuring a Run step that interacts with the Harness API.

Prerequisites

Before configuring this step, ensure you have:

• A Harness API Key: Refer to Add and Manage API Keys. Store this API key securely as a Harness Secret.
• The Dashboard ID of the STO Pipeline Execution Summary Dashboard:
  • Navigate to the STO Pipeline Execution Summary Dashboard.
  • Obtain the Dashboard ID from the dashboard URL, e.g., https://app.harness.io/ng/account/ACCOUNT/dashboards/folder/shared/view/30442. In this URL, the ID is 30442.

Configure the Run step in your pipeline

1. Create a pipeline variable named TOKEN and reference the stored Harness API key as a secret using Harness expressions.



2. Add a Run step to your pipeline. This step must be placed after your security scan steps. If your pipeline includes multiple security steps, place the Run step after the final security scan step.

3. Configure the Run step:

   • Name: Set a descriptive name, e.g., "Export PDF"
   • Registry Type: Configure your container registry with Harness Artifact Registry or Third-Party Artifact Registry
   • Image: Set to curlimages/curl
   • Shell: Set to Sh

4. Use the following script in the Command field, replacing <YOUR_DASHBOARD_ID> and example@harness.io with your actual Dashboard ID and recipient email addresses:

   EXECUTION_ID=<+pipeline.executionId>
   ACCOUNT_ID=<+account.identifier>
   TOKEN=<+pipeline.variables.TOKEN>
   PIPELINE=<+pipeline.name>
   DASHBOARD_ID=<YOUR_DASHBOARD_ID>

   echo 'Sleeping for a couple of seconds'
   sleep 20

   echo 'Scheduling Report Generation'
   curl --location "https://app.harness.io/dashboard/schedules/run_once?accountId=${ACCOUNT_ID}" \
   --header "x-api-key: ${TOKEN}" \
   --header 'Accept: */*' \
   --header 'Content-Type: application/json' \
   --data-raw "{
       \"dashboard_id\":\"${DASHBOARD_ID}\",
       \"destination_emails\":\"example@harness.io\",
       \"file_type\":\"wysiwyg_pdf\",
       \"name\": \"${PIPELINE}:${EXECUTION_ID}\",
       \"filters\": \"Execution=${EXECUTION_ID}\"
   }"

After configuration, this Run step automatically fetches the scan results, generates a PDF report, and emails the report to the specified email addresses.
