Generate SLSA Provenance

Harness SCS when used along with Harness CI Hosted Builds(Harness Cloud), ensures that the resulting artifacts have SLSA Level 3 provenance that every consumer (including the following deployment stage) can verify for artifact integrity prior to making use of this artifact. Build hardening for Level 3 compliance is achieved through:

  1. Built-in infrastructure isolation for every build where new infrastructure is created for every run and deleted after the run completes.
  2. OPA policy enforcement on CI stage templates with non-privileged, hosted containerized steps that do not use volume mounts. This disallows the build steps to access the provenance key information in compliance with SLSA specifications.

End result is that hackers cannot do tampering during the build process. This capability when coupled with open source governance through SBOM lifecycle management provides the most advanced shift-left supply chain security solution in the market today.

In Harness SCS, you can use the SLSA Generation step to configure your pipeline to generate SLSA Provenance and optionally attest and sign the attestation. The generated provenance is saved in Harness and can be easily accessed from the Artifact section in SCS. If the provenance is attested and signed with keys, the resulting attestation file (.att) is pushed to the container registry. Here's an overview of the workflow:

Deprecation Alert

The configuration for SLSA Generation and attestation previously handled in the Overview section of the pipeline stage is no longer supported. To generate SLSA Provenance and attestation, use the dedicated SLSA Generation step. For detailed instructions, refer to the SLSA Generation step configuration documentation. If your pipelines are currently configured through the Overview section, we strongly recommend migrating to the SLSA Generation step to ensure compatibility and continued support.

SLSA Generation step configuration​

The SLSA Generation step enables you to generate SLSA Provenance and optionally attest it. The generated provenance is saved in the Artifact section in SCS, while the attestation file is pushed to the configured container registry. This step should be configured immediately after completing your image-building process, as the image digest is required for provenance generation and attestation.

The SLSA Generation step can be used in two workflows depending on how you build your image.

  1. SLSA Generation when you use the Harness CI Build and Push step to build your image.
  2. SLSA Generation when you use a Run step to build your image.

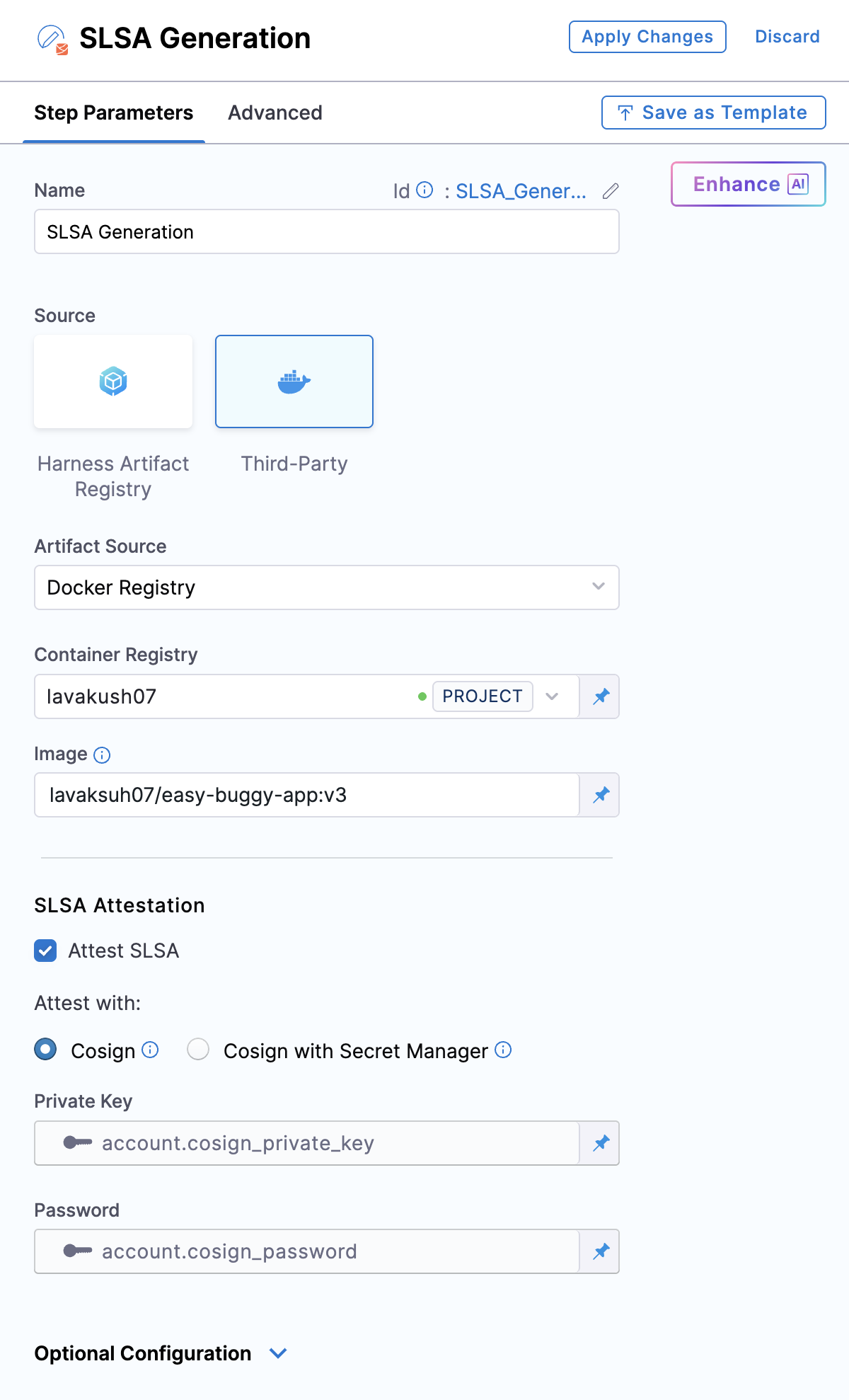

Follow the instructions below to configure the SLSA Generation step.

  • Search and add the SLSA Generation step to your pipeline. It is important to place this step immediately after the steps that complete your image-building process, as it requires the artifact digest as input.
  • Artifact Source: Configure your artifact source by selecting from the options available in the dropdown menu. You can choose from DockerHub, ECR, GCR, ACR, or GAR. Select the corresponding artifact source tab below for detailed instructions on configuration.

  • Container Registry: Select the Docker Registry connector that is configured for the DockerHub container registry where the artifact is stored.

  • Image: Enter the name of your image, example my-docker-org/repo-name.

  • Artifact Digest: Specify the digest of your artifact. After building your image using the Build and Push step or a Run step, save the digest in a variable. You can then reference it here using an Harness Expressions. Refer to the workflows described below for detailed guidance.

With this configuration, the step generates the SLSA Provenance and stores it in the Artifact section of SCS. To attest to the generated provenance, follow the instructions in the section below.

Attest SLSA Provenance​

To configure attestation, along with the above configuration you should enable the SLSA Attestation checkbox in the SLSA Generation step. This requires a key pair generated using Cosign.

You can perform the attestation with Cosign or Cosign with Secret Manager

To perform attestation with Cosign selected, you need a key pair. Follow the instructions below to generate the key pair.

Generate key pairs using Cosign for SBOM attestation

To perform the attestation process, you need to input the private key and password. Use Cosign to generate the keys in the ecdsa-p256 format. Here’s how to generate them:

  1. Install Cosign
  2. Run the command cosign generate-key-pair to generate the key pairs.
  3. Make sure to note the password used for generating the key pairs. This password is needed along with the private key for performing the attestation.
  4. This command will generate a private key as a .key file and a public key as a .pub file. To securely store these files, use Harness file secret.

SLSA Generation step configuration with Build and Push step​

When using the Harness CI Build and Push step for the image-building process, you can configure the SLSA Generation step to generate and attest to the Provenance. Follow the SLSA Generation step configuration, for the Artifact Digest field, you can use Harness Expressions to dynamically populate the digest of the image built during the Build and Push step.

For example, the expression could look like:
<+pipeline.stages.<YOUR_STAGE_NAME>.spec.execution.steps.<YOUR_BUILD_AND_PUSH_STEP_NAME>.output.outputVariables.digest>

If you have already executed the Build and Push step, navigate to the execution details, open the Output Variables tab, and copy the expression for the digest from the Input Name column.

For performing the attestation, refer to the section Attest SLSA Provenance

SLSA Generation step configuration with Run step​

The SLSA Generation step requires your container image details along with its digest. If your build process involves a Run step to build the image, it’s crucial to expose the digest of the image so it can be referenced in the Artifact Digest field of the SLSA Generation step as an expression.

This section outlines a sample workflow that uses Run steps for the build process and then configures the SLSA Generation step. The workflow consists of the following steps:

  1. Build and Push the Image: This step builds the image and pushes it to the configured container registry using the Kaniko image.
  2. Fetch the Artifact Digest: This step fetches the artifact digest using the image name. It leverages Skopeo to retrieve the digest from the container registry based on the image built in the previous step.
  3. Generate SLSA: Along with the SLSA Generation step configuration. The Artifact Digest field is populated with the expression referencing the digest fetched in the previous step.

Here’s how the flow looks

Follow the instructions below to set up this pipeline workflow.

Build and Push with Run step​

  1. Add a Run Step: Search for and add a Run step to the Build stage of your pipeline.
  2. Container Registry: Configure your container registry using Harness Connectors.
  3. Image: Use a Kaniko image for building and pushing the container image. Example: gcr.io/kaniko-project/executor:debug.
  4. Shell: Set the shell to Sh.
  5. Command: Use the following command to build and push the image. Replace placeholders with your image details and configure Harness Secrets for your Docker username and token.
Command to Build and Push the Image
#!/bin/sh

# Set variables
DOCKER_USERNAME=<+secrets.getValue("docker_username")>
DOCKER_PAT=<+secrets.getValue("docker_pat")>
DOCKER_REPO="YOUR_DOCKER_REPO"
IMAGE_TAG="YOUR_IMAGE_TAG"
DOCKER_REGISTRY="https://index.docker.io/v1/"

# Create a directory for Kaniko configuration
mkdir -p /kaniko/.docker

# Create the Kaniko credentials file
cat <<EOF > /kaniko/.docker/config.json
{
  "auths": {
    "$DOCKER_REGISTRY": {
      "username": "$DOCKER_USERNAME",
      "password": "$DOCKER_PAT"
    }
  }
}
EOF

echo "Kaniko credentials created."

# Use Kaniko to build and push the image
/kaniko/executor \
  --context ./stable/alpine/ \
  --dockerfile ./stable/alpine/Dockerfile \
  --destination "$DOCKER_REPO:$IMAGE_TAG" \
  --cache=true

image=$DOCKER_REPO:$IMAGE_TAG
# Clean up
rm -rf /kaniko/.docker
  1. Optional Configuration: Expand Optional Configuration and define an Output Variable.
    • Name: image
    • Type: String
    • Value: image

This step builds the image, pushes it to the configured container registry, and exposes the image name as an output variable. This variable is used in the next step to fetch the image digest.

Fetch the artifact's digest​

  1. Add a Run Step: Search for and add a Run step.
  2. Container Registry: Configure your container registry using Harness Connectors.
  3. Image: Use a Skopeo image. Example: mrliptontea/skopeo:1.3.0.
  4. Shell: Set the shell to Sh.
  5. Command: Use the following command to fetch the digest using the Image name from the previous step. Replace placeholders with your step details.
Command to fetch the digest
#!/bin/sh

IMAGE="<+pipeline.stages.<YOUR_STAGE_NAME>.spec.execution.steps.<YOUR_STEP_NAME>.output.outputVariables.image>"
DIGEST=$(skopeo inspect docker://$IMAGE --format "{{.Digest}}")

digest=$DIGEST
echo "Image Digest: $DIGEST"
  1. Optional Configuration: Expand Optional Configuration and define an Output Variable.
    • Name: digest
    • Type: String
    • Value: digest

This step will fetch the digest of the image and exposes it as a variable digest, this variable is used in the next step to generate the SLSA Provenance.

Configure SLSA Generation step with artifact digest​

  1. Add the SLSA Generation to the pipeline

  2. Follow the instructions in the SLSA Generation Step Configuration section. For the Artifact Digest field, use an expression to dynamically populate the digest from the previous step.
    For example:
    <+pipeline.stages.<YOUR_STAGE_NAME>.spec.execution.steps.<YOUR_RUN_STEP_NAME>.output.outputVariables.digest>

    Replace <YOUR_STAGE_NAME> and <YOUR_RUN_STEP_NAME> with the name of your Stage and Run step in the pipeline.

For performing the attestation, refer to the section Attest SLSA Provenance

Run the pipeline​

When you run a pipeline with SLSA generation enabled, Harness SCS:

  • Generates an SLSA Provenance for the image created by the Build and Push steps in the Build stage.
  • Generates and signs an attestation using the provided key and password.
  • Stores the SLSA Provenance in Harness and uploads the .att file to your container registry alongside the image.

The signed attestation is stored, as an .att file, in the artifact repository along with the image. You can also find the SLSA Provenance on the Supply Chain tab on the Execution details page in Harness. For more information, go to view pipeline execution results.

Provenance example​

Here's an example of an SLSA Provenance generated by Harness SCS. The information in your SLSA Provenance might vary depending on your build and changes to the provenance structure applied in SCS updates. Identifiers, repo names, and other details in this example are anonymized or truncated.

{
  "_type": "https://in-toto.io/Statement/v0.1",
  "subject": [
    {
      "name": "index.docker.io/harness/plugins",
      "digest": {
        "sha256": "2deed18c31c2bewfab36d121218e2dfdfccafddd7d2llkkl5"
      }
    }
  ],
  "predicateType": "https://slsa.dev/provenance/v1",
  "predicate": {
    "buildDefinition": {
      "buildType": "https://developer.harness.io/docs/software-supply-chain-assurance/slsa/generate-slsa/",
      "externalParameters": {
        "codeMetadata": {
          "repositoryURL": "https://github.com/nginxinc/docker-nginx",
          "branch": "master"
        },
        "triggerMetadata": {
          "triggerType": "MANUAL",
          "triggeredBy": "Humanshu Arora"
        }
      },
      "internalParameters": {
        "pipelineExecutionId": "UECDFDECEn8PpEfqhQ",
        "accountId": "ppbDDDVDSarz_23sd_d_tWT7g",
        "pipelineIdentifier": "SLSA_Build_and_Push",
        "tool": "harness/slsa-plugin"
      }
    },
    "runDetails": {
      "builder": {
        "id": "https://developer.harness.io/docs/continuous-integration/use-ci/set-up-build-infrastructure/which-build-infrastructure-is-right-for-me"
      },
      "metadata": {
        "invocationId": "aRrEdsfdfdRwWdfdfdecEnwdg",
        "startedOn": "2024-11-26T09:37:18.000Z",
        "finishedOn": "2024-11-26T09:37:18.000Z"
      }
    }
  }
}

Verify SLSA Provenance​

After generating SLSA Provenance, you can configure your pipeline to verify SLSA Provenance.
